Component testing
Motor

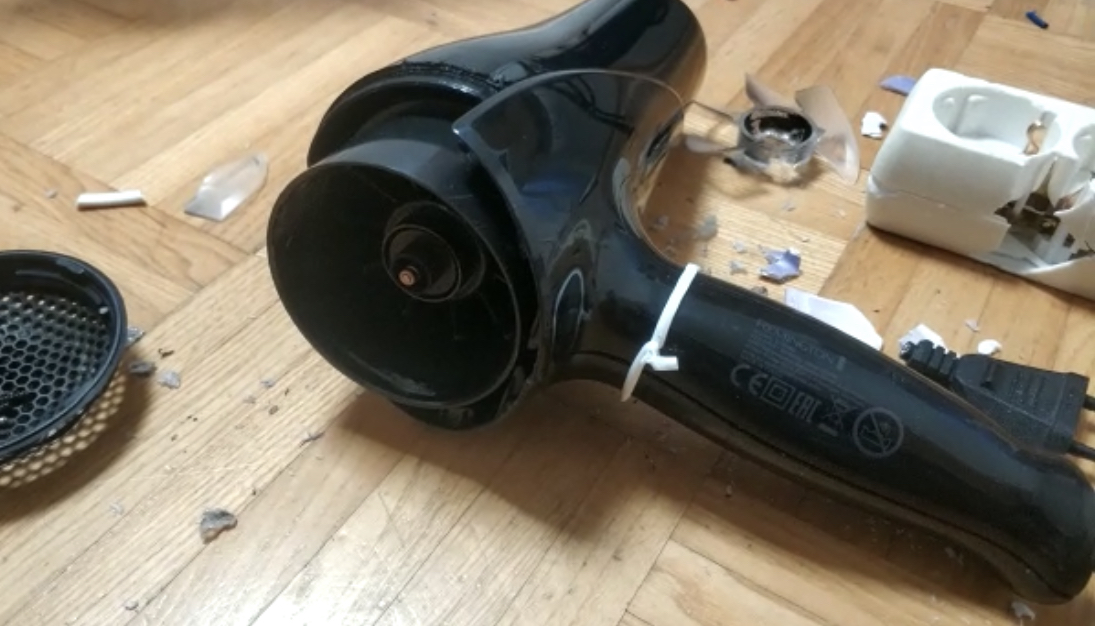

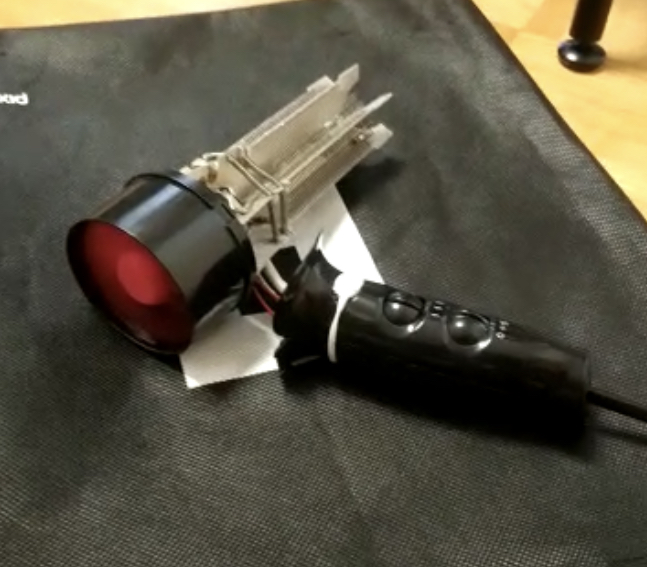

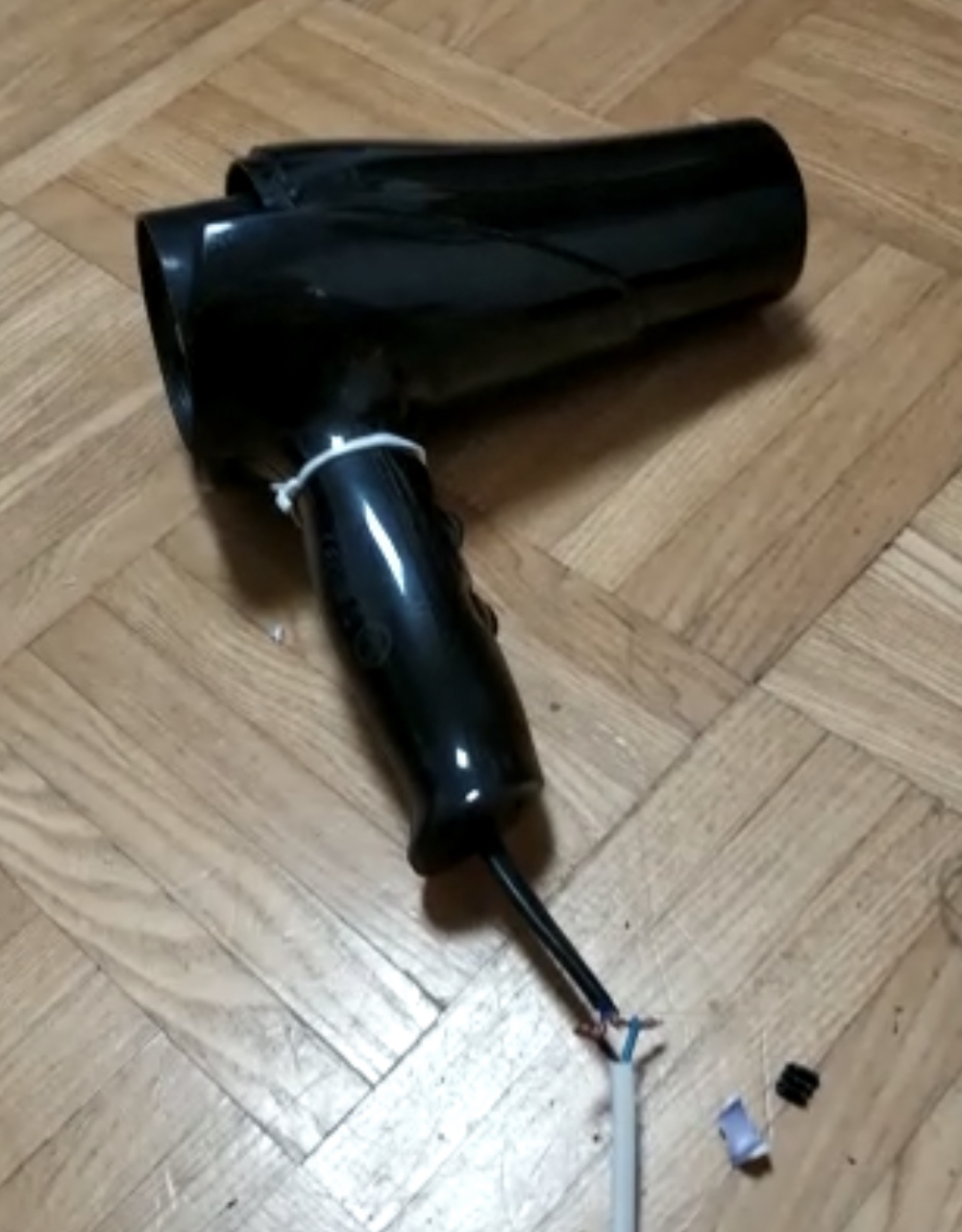

The very first motor we acquired was from an old, broken hair dryer.

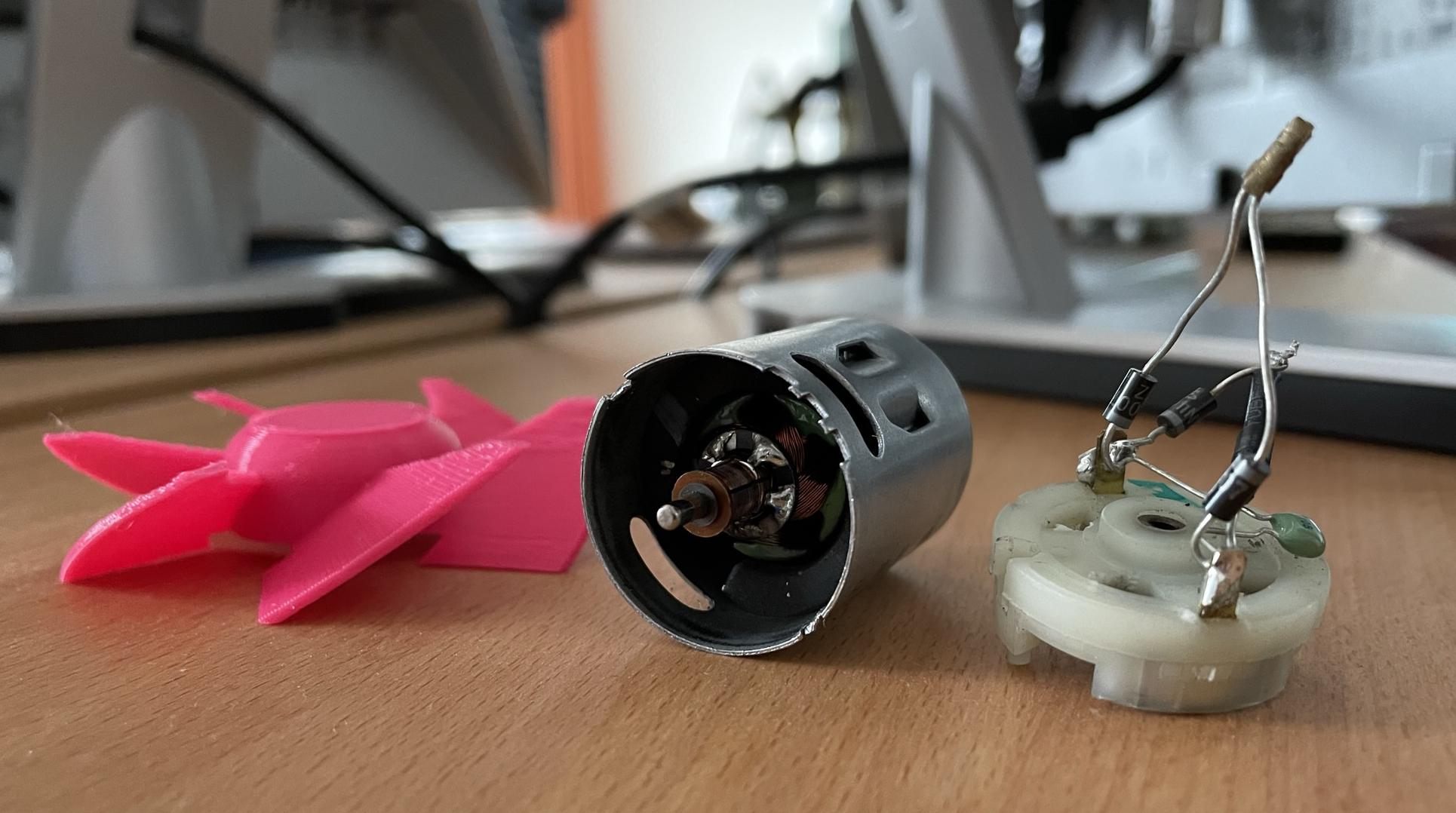

We had to 3D-print a new fan for the motor because the installed one was already broken from being thrown away. After extracting the motor and adding the new fan, we tested the motor with different power sources.
While testing the motor with a 18V LiPo battery, we sadly overwhelmed and broke the motor. We found however that one or maybe even two of these motors should be able to power the BesAir.
We later luckily found a new motor in the form of an old server fan. It was not as strong as the hair dryer motor, but it was sufficient as a starting point for a first prototype. Nevertheless, we still ordered a few old hair dryers from Willhaben to eventually get a stronger motor for a later prototype.

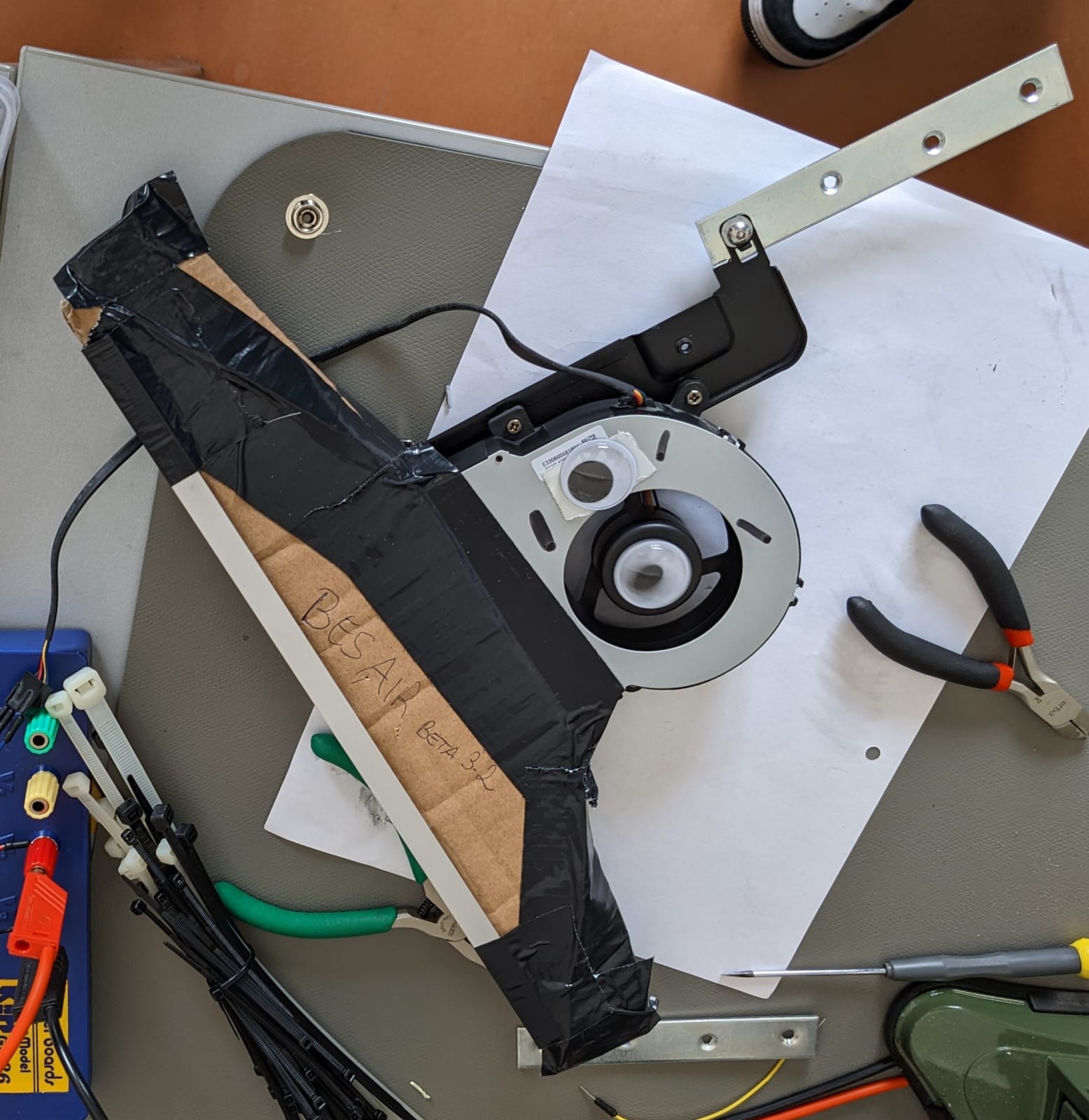

The depicted prototype above using the server fan also had a nozzle attached to it. It was made from carton and tape, and we hypothesized that it would be able to direct the airflow in a more precise way. It turned out that most of the air still got out in the middle of the nozzle, and the sides almost got no airflow at all. In contrast to the hair dryer motor, the server fan also required a PWM signal to control its speed instead of a simple on/off signal via a relay. It also was not able to spin down to a complete stop if no signal was provided, but rather stayed at a very low speed.
Sensors and Software

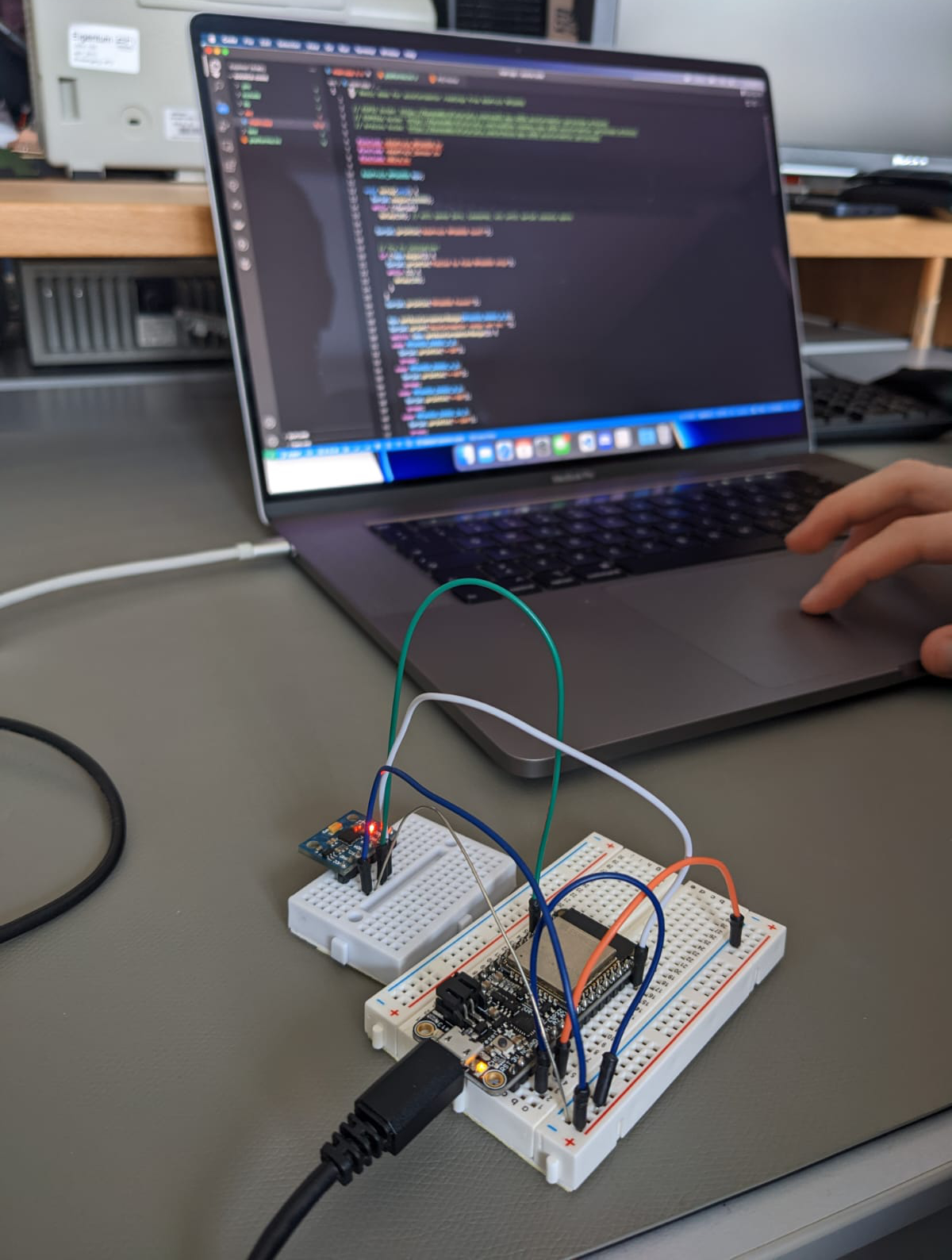

After acquiring an accelerometer, we started implementing the software for the BesAir. The first step was to get the current acceleration and check if it is above a certain threshold. This however turned out to be slightly more challenging than expected. The accelerometer constantly measured a value of 9.8 m/s², which is the acceleration due to gravity. When moving the device, it could then lead to inconsistent measurements because in some cases gravity was working against the movement and in others it was working with it. To counteract this, we decided to calculate the total acceleration of the device by using the following formula:
\[a = \sqrt{a_x^2 + a_y^2 + a_z^2}\]Basically, this formula gives us the length of the total acceleration vector instead of measuring the acceleration in each direction separately. Because this calculation is happening very often, we simplified the calculation to the following:
float total_acc = acc_x * acc_x + acc_y * acc_y + acc_z * acc_z;
The resulting value was then compared to a threshold value and if it was above the threshold, the motor was turned on. There were two separate ways to control the motor. One using PWM to control the speed of the server fan, and one using a binary on/off signal for the hair dryer motor. To not turn off the motors too early, we also added a timer that would turn off the motor only after a certain amount of time. The following code shows a simplified version of the software that was used for the first prototype.
The code basically went through the following steps:
- Read the acceleration from the accelerometer
- Calculate the total acceleration
- Check if the total acceleration is above the threshold
- If it is, turn on the motor and reset the timer
- If it is not, check if a specified time has passed since the last reset
- If it has, turn off the motor
Integrating the prototypes
After the software was ready and tested with the server fan, we added the code for the webserver and connection to the app. With the help of the app, the user can enable or disable the BesAir and also should be able to change the light strip colors.

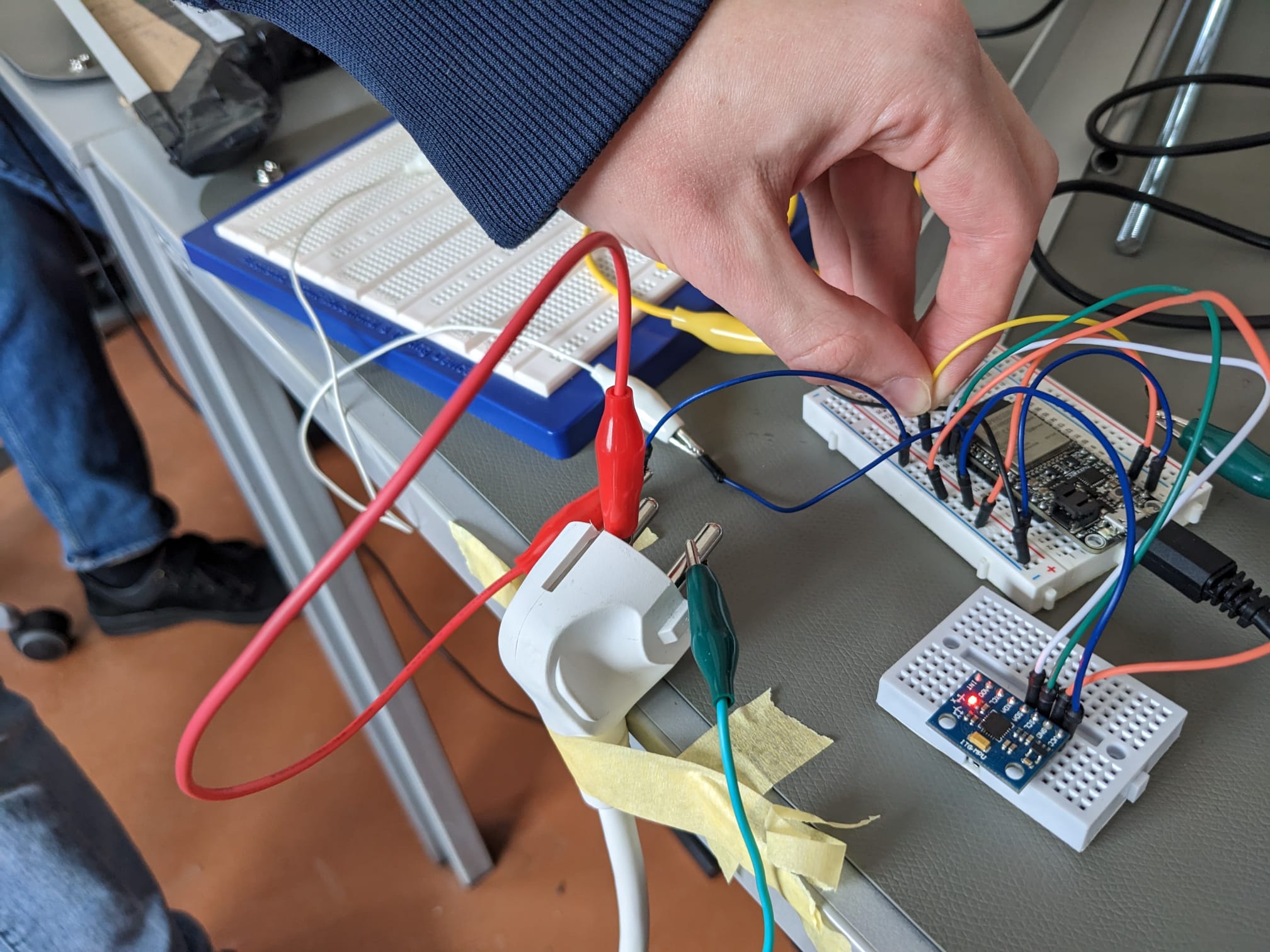

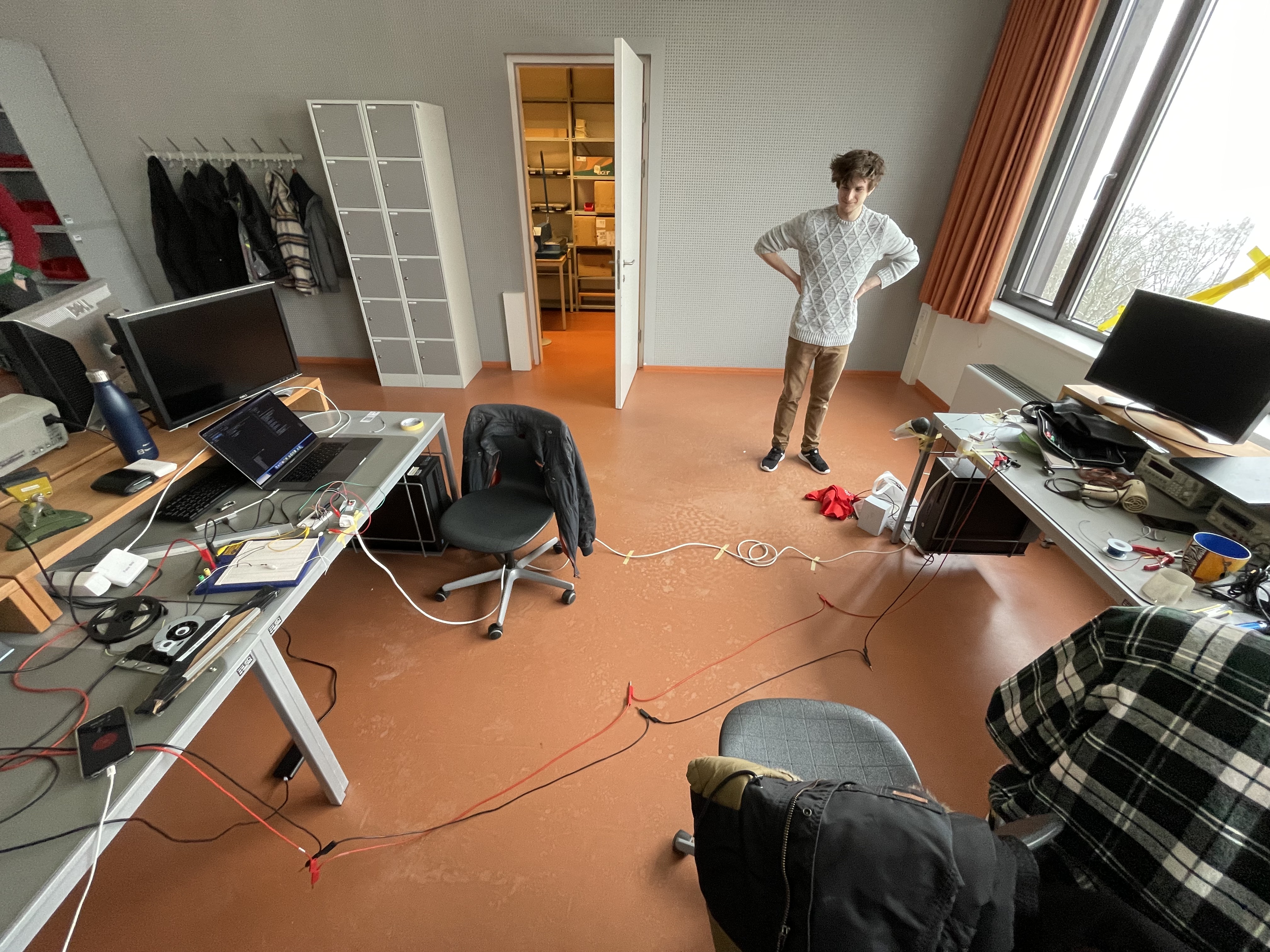

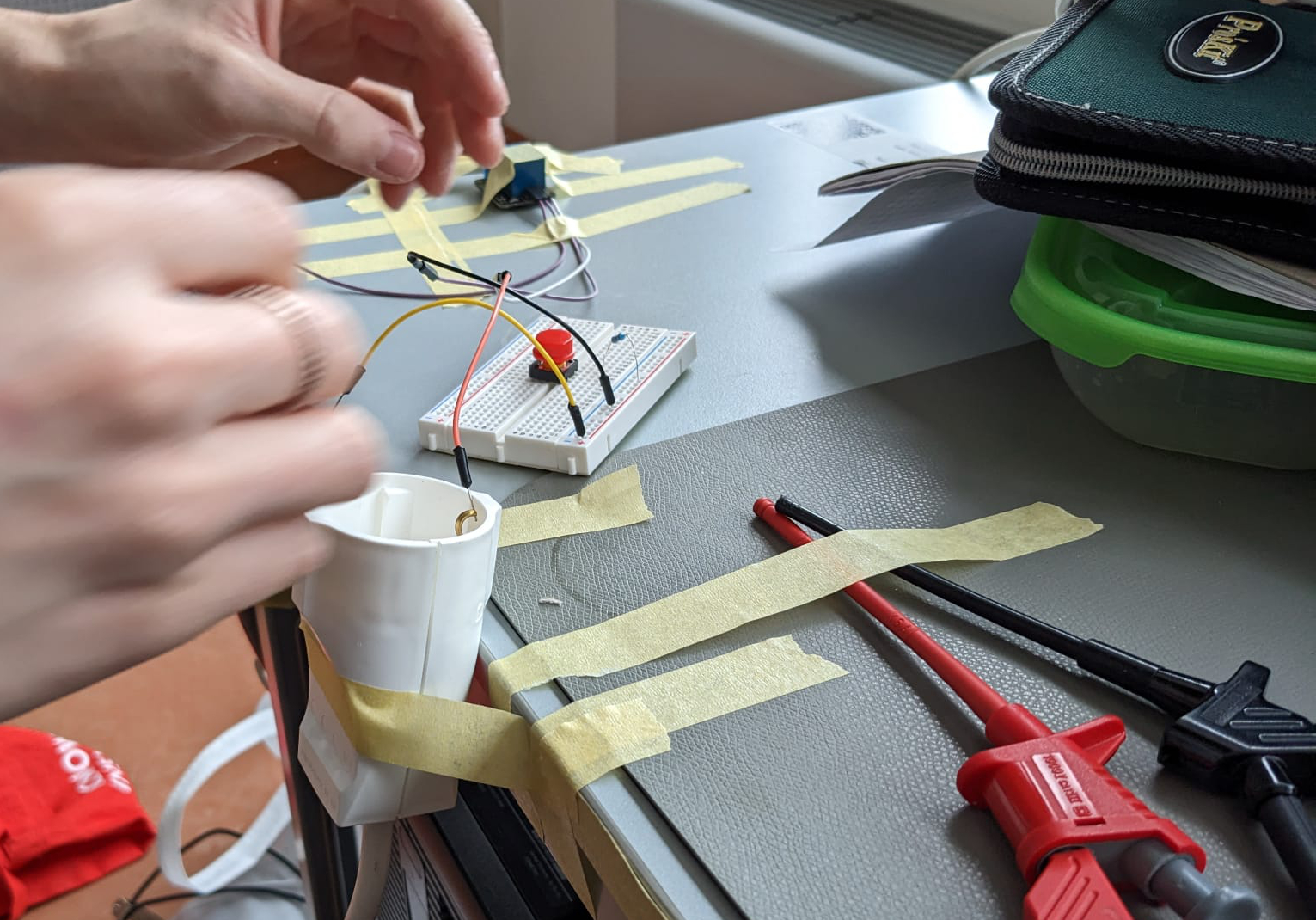

The connection between the esp and the relay which should eventually control the hair dryer motor was initially quite challenging, as we built the prototypes so far apart. We had to connect the two with a long cable and were able to verify that the esp can control the relay and activate the hair dryer plugged into it.
Adding Audio
Audio is an essential part of the BesAir experience. Initial ideas for what audio could be used for where a booting sequence and playing brushing sounds of a broom when BesAir is in use. Or alternatively amplifying the motor sound to make it more uncomfortable to use.

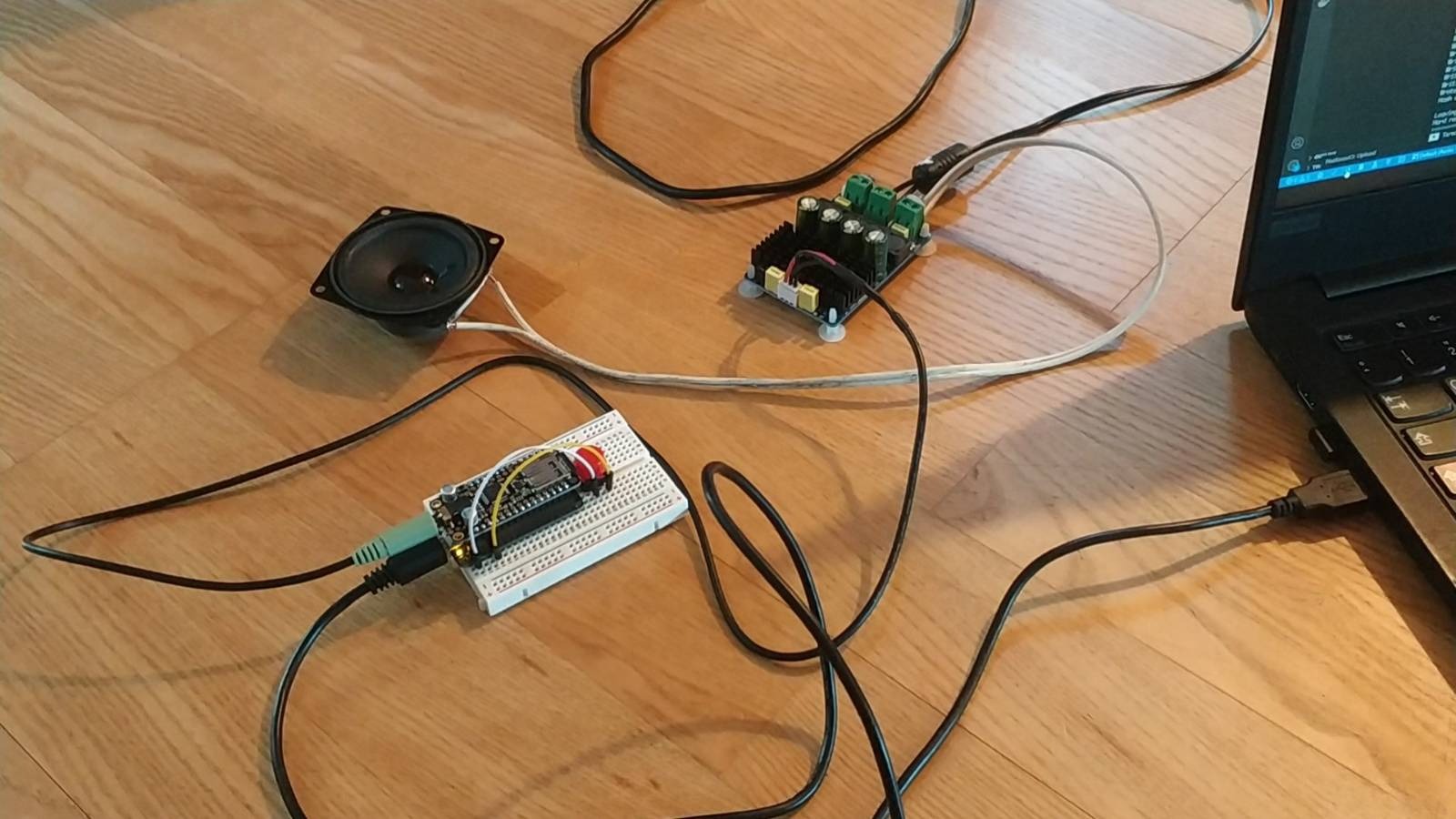

Audio is supplied by a ‘Adafruit Music Maker FeatherWing’ board which mounts on top of the ESP32 Feather. The ‘Adafruit_VS1053 library’ can then be used to play sound files from a micro SD card that inserts into the FeatherWing.
